Mitsubishi 4M40-TL turbocharged diesel engine delivering about 55.7 net horsepower, a maximum digging depth of roughly 13.4 feet (4,090 mm), and a track width of 450 mm.
Dimensions
Overall Width: 7 ft 2 in (2.18 m)
Overall Height: 9 ft 5 in (2.87 m)
Engine & Performance Specs

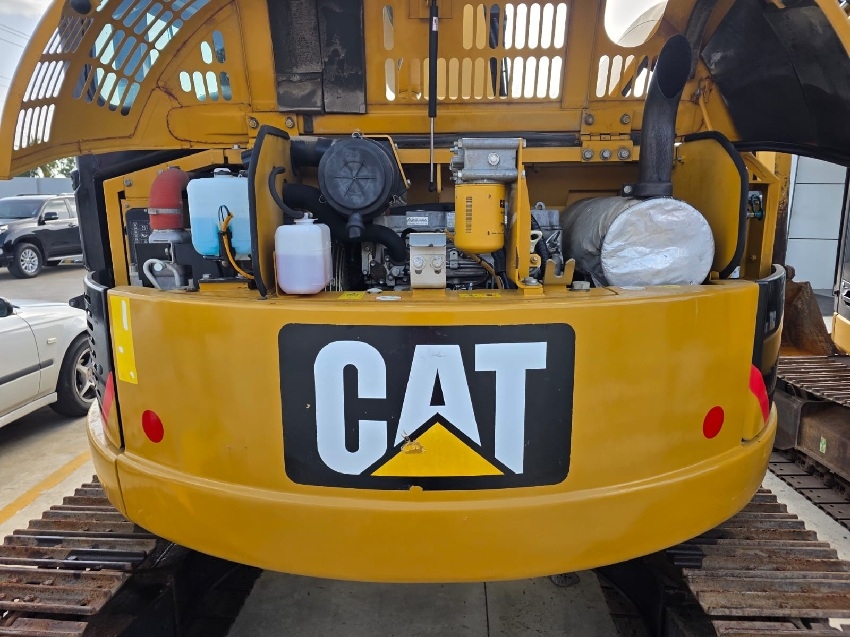

Engine Model: Mitsubishi 4M40-TL turbocharged diesel
Net Power: 55.6 hp (41.5 kW)
Gross Power: 57.7 hp
Displacement: 172.7 cu in (2.8 L)
Working Ranges & Hydraulics
Maximum Digging Depth: Up to 13.7 ft (4.18 m) depending on stick setup
Maximum Reach along Ground: 22.6 ft (6.89 m)
Hydraulic Pump Flow Capacity: 71.90 gpm (272.14 lpm)
Hydraulic System Relief Pressure: 4,641 psi (320 bar)
Fluid Refill Capacities
Fuel Tank: 33.1 gal (125.3 L)
Hydraulic System Fluid: 24.9 gal (94.3 L)
Engine Oil: 3.4 gal (12.9 L
